2-way 2-position series

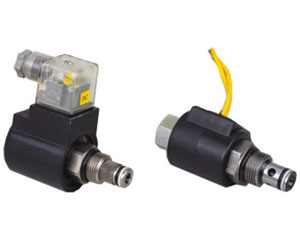

This model is a 2-way 2-position screw cartridge electrical operated directional control valve with conical sealing. Which is used to control the on/off and direction of the fluid. The structure is wimble valve, so it has good sealing capability.

Technical specification

	LCFW-4-2B25-	LCFW-6-2BL25-			LCFW-6-2BL21-	LCFW-8-2AL21-
	DC12*-00	**-00	DC12*-01	**-02	DC12*-03	**-00	DC12*-00	**-00
Rated Flow (l/min)	16	23	25	40	25	30	20	45
(Drop/min)	5~10	5~10	5~10	5~10	5~10	5~10	3~5	<100
Pressure (MPa)	25	25	25	25	25	21	21	28
Working Voltage (V)	DC12	DC12/24 AC220	DC12	DC12/24 AC220	DC12	DC12/24	DC12	DC12/24
Minimum Working Voltage (V)	90%Normal pressure
Filtration accuracy(um)	25
Hydraulic Fluid	Mineral Oil, Phosphate
Viscosity (mm2/s)	2.8~320
Fluid Temp. ()	-20~70

Model description

Function symbol

External dimensions Hole size
