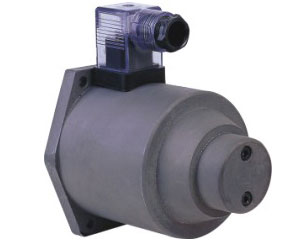

Direct-action proportional solenoid for flow cont
Attention:
1. For installation, use screws with a tensile strength of greater than
85kg/mm2 (Available upon purchase).
2. Inlet O-Ring must fully comply with GB1325-76 Standards.
3. Notes For Plug Use
a) Remove the hollow crew from inside the cover, tighten it again after
wire is connected to the base.
b) A rubber ring is provided at cable entrance, the plug wiring will be
tightly clamped when the threaded cover is tightened.
(Note: 3-wire cable should be used for connection)
Technical Specification
|
Model |
BMF80Q1-120/8 |
|
Rated Current (mA) |
0.6 |
|
Rated Attraction Force (N) |
120 |
|
Rated Travel (mm) |
8 |
|
Force Hysteresis (%) |
3.5 |
|
Current Hysteresis (%) |
3.5 |
|
Nominal Fluid Pressure (MPa) |
21 |
Model description
External dimensions
