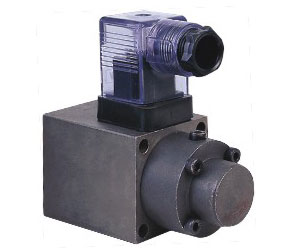

Direct-action proportional solenoid series

Attention:
   1.For installation, use screws with a tensile strength of greater than 85kg/mm2 (Available upon purchase).
   2.Inlet O-Ring must fully comply with GB1325-76 Standards.
   3.Notes For Plug Use
   a)Remove the hollow crew from inside the cover, tighten it again after wire is connected to the base.
   b)A rubber ring is provided at cable entrance, the plug wiring will be tightly clamped when the threaded cover is tightened.
   (Note: 3-wire cable should be used for connection)

Technical Specification

Model
BMF45P1-45/3
Rated Current (mA)
0.7
Rated Attraction Force (N)
45+5N
Rated Travel (mm)
3
Force Hysteresis (%)
1.6
Current Hysteresis (%)
1.6
Nominal Fluid Pressure (MPa)
10



Model description

""

External dimensions

""
