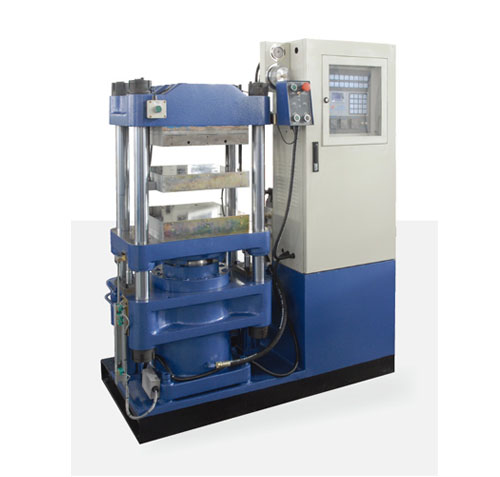

Double-Layer plate vulcanization press for rubber
Description:
With simple structure, high pressure, good adaptability and high productivity, this series is the main forming equipment for various modular and non-modular rubber products. It is also suitable for the compression forming of thermoset plastics, foam, resin, bakelite, thin metal and construction materials.
Features:
The moving platen travels up quickly, clamps slowly and travels down quickly. Fast-to-slow platen closing and fast-to-slow gas discharge can be adjusted separately. (Excluding XLB/400KN).
During product vulcanization forming, oil pump motor stops with automatic pressure compensation function and pump stop lagging, meaning a more rational and reliable oil loop configuration.
Venting time, number of ventings, heating temperature and vulcanization time can all be set via the controller with ease of operation.
Two work modes, Manual and Semi-Auto. Set work modes for conventional vulcanization machine: Program I, platen transfer mode; Program II, meet processing requirements for special gums. (Excluding XLB/400KN)
The hydraulic cylinders adopt independent knowledge property right called cylinders complex airproof device (patent No ZL03220060.3) with reliable sealing and long life.
Novel cylinder seals with reliable sealing and long life.
Electrical system uses special PLCs for vulcanization machines, with convenient, accurate and reliable control. (Excluding XLB/400KN)
User can choose Siemens or Mitsubishi PLC controller, 5.7 inch touch-screen
Technical Specification
Flow of machine motions
2RT
1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing
6open the mould
7push out the mould
8eject the mould, pick up the finished products
2M2the second mould platen goes down
3M1the first mould platen goes down
4load the mould
5close mould, increase pressure , expel bubbles out and vulcanizing
6open the mould,push out the mould
2lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3M2the second mould platen and M1the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure, expel bubbles out and vulcanizing
5open the mould, push out the mould
6M1the first mould platen goes up
7M2the second mould platen goes up and opens the mould
8M3the third mould platen goes back with the slide plate
9M2the second mould platen goes down and locating
10Ower plate (L)goes up ,take out the finished product, clean the mould.
With simple structure, high pressure, good adaptability and high productivity, this series is the main forming equipment for various modular and non-modular rubber products. It is also suitable for the compression forming of thermoset plastics, foam, resin, bakelite, thin metal and construction materials.
Features:
The moving platen travels up quickly, clamps slowly and travels down quickly. Fast-to-slow platen closing and fast-to-slow gas discharge can be adjusted separately. (Excluding XLB/400KN).
During product vulcanization forming, oil pump motor stops with automatic pressure compensation function and pump stop lagging, meaning a more rational and reliable oil loop configuration.
Venting time, number of ventings, heating temperature and vulcanization time can all be set via the controller with ease of operation.
Two work modes, Manual and Semi-Auto. Set work modes for conventional vulcanization machine: Program I, platen transfer mode; Program II, meet processing requirements for special gums. (Excluding XLB/400KN)
The hydraulic cylinders adopt independent knowledge property right called cylinders complex airproof device (patent No ZL03220060.3) with reliable sealing and long life.
Novel cylinder seals with reliable sealing and long life.
Electrical system uses special PLCs for vulcanization machines, with convenient, accurate and reliable control. (Excluding XLB/400KN)
User can choose Siemens or Mitsubishi PLC controller, 5.7 inch touch-screen
Technical Specification
Items |
Unit |
Specification |
Clamping force |
kN |
400 |
Max.System pressure |
MPa |
23 |
Clamping Stroke |
mm |
250 |
Rapid Clamping Speed |
mm/s |
20 |
Heating Plate Size |
mm |
350350 |
Number of Working layers |
layer |
2 |
Layers Spacing |
mm |
125 |
Max.Temperature |
|
250 |
Motor Power |
kW |
2.2 |
Heating Power |
kW |
7.2 |
External Dimension (LWH) |
mm |
12608201540 |
Weight |
kg |
1000 |
Oil Tank Capacity |
L |
210 |
Flow of machine motions
2RT
1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing
6open the mould
7push out the mould
8eject the mould, pick up the finished products
3RT
1initial state 2M2the second mould platen goes down
3M1the first mould platen goes down
4load the mould
5close mould, increase pressure , expel bubbles out and vulcanizing
6open the mould,push out the mould
4RT
1initial state 2lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3M2the second mould platen and M1the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure, expel bubbles out and vulcanizing
5open the mould, push out the mould
6M1the first mould platen goes up
7M2the second mould platen goes up and opens the mould
8M3the third mould platen goes back with the slide plate
9M2the second mould platen goes down and locating
10Ower plate (L)goes up ,take out the finished product, clean the mould.
