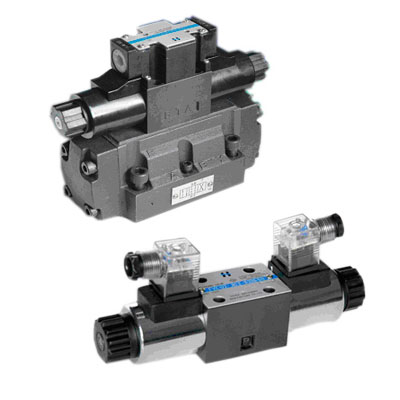

Electrical operated directional control valve
This product is a direct -action type of directional control slide valve which is manipulated by the solenoid. It is mainly used to achieve flow on-offs and change flow directions in hydraulic systems, providing various slide valve functions based on different requirements. The solenoid adopts DC or AC power supply and is screwed onto the valve body, ensuring good sealing for both sides of the valve body.
Model description Function symbol
Mounting dimensions
Plate size
Technical Specification
|
Model |
FW-01 |
FW-02 |
FW-03 | |
|
Maximum Pressure (MPa) |
PortPAB |
25 |
31.5 |
3.15 |
|
Port T |
6 |
16 |
16 | |
|
Maximum Flow (l/m) |
14 |
35 |
63 | |
| Weight (Kg) |
2-position |
1.0 |
1.2 |
4.4 |
|
3-position |
1.4 |
1.6 |
6.0 | |
| Hydraulic Fluid |
Mineral Oil, Phosphate | |||
|
Fluid Temp. () |
-20~70 | |||
| Viscosity (mm2/s) |
2.8~380 | |||
| Power Supply |
AC |
DC | ||
| Voltage |
110220/50HZ |
1224110 | ||
| Power Consumption (W) |
- |
35 | ||
| Attraction Power (W) |
65 |
- | ||
| Switch Freqency (t/h) |
7200 |
15000 | ||
Model description Function symbol
Mounting dimensions
Plate size
