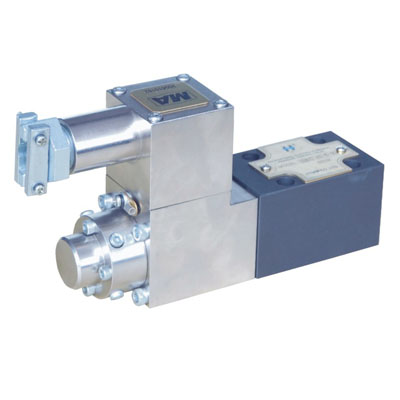

Explosion isolation proportional directly operated relief valve
As a direct action relief valve controlled by a proportional solenoid,this explosion isolation valve may be used for a hydraulic system with small flow or as the pilot relief valves, with system pressure controlled by the value of input current.
Technical specification
|
Maximum Pressure (MPa) |
31.5 |
|
Maximum Flow (l/min) |
2 |
|
Minimum Flow (l/min) |
0.3 |
|
Rated Current (mA) |
750 |
|
Coil Resistance |
10 |
|
Hysteresis (%) |
<2 |
|
Repeatability (%) |
1 |
|
Weight (Kg) |
2 |
