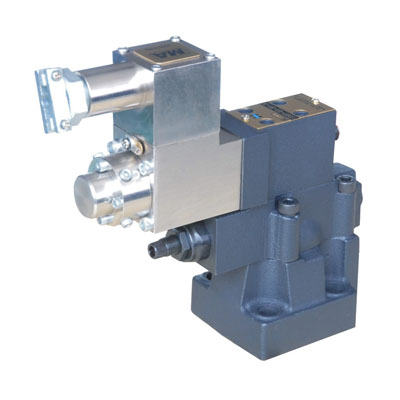

Explosion isolation proportional pilot-operated relief valve

   Comprised of a proportional directly-operated relief valve, a pressure limiting valve and a low-noise relief  valve, this product controls system pressure according to the value of input current.

Technical Specification



Model
03
06
10
Maximum pressure MPa
31.5
31.5
31.5
Maximum flow (l/min)
100
200
400
Minimum flow (l/min)
3
3
3
Rated current (mA)
750
750
750
Coil resistance
1019.5
Hysteresis (%)
2
2
2
Repeatability (%)
1
1
1
Weight (Kg)
5.6
6.3
10

Model description                                                                   Function symbol



Mounting dimensions



Attentionuse upturned hole to exhaust in the loop
