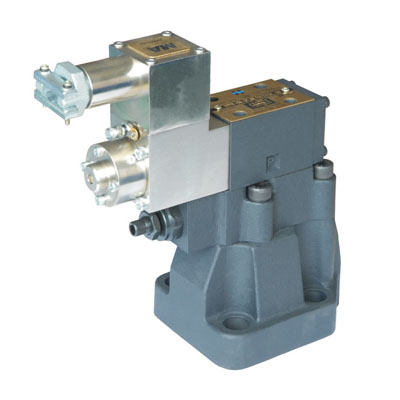

Explosion isolation solenoid relief valve

This explosion isolation valve is a pilot-operated relief valve, with a conical structure for both the pilot valvae and the main valvae.Model Y is mainly used to control the system pressure while Model YW can control the systempressure and unload it.

Technical specification

Model		03	08	10
Maximum flow (l/m)		100	200	400
Working pressure ABX(MPa)		To 31.5
Back pressure (MPa)	Y	To 31.5
	YW	To6
Minimum control pressure (Mpa)		Flow-related
Maximum control pressure (Mpa)		31.5
Hydraulic fluid		Mineral oil, phosphate-ester
Fluid temp()		-20~70
Viscosity (mm2/s)		2.8~100
Solenoid performance		See GDFW-02
