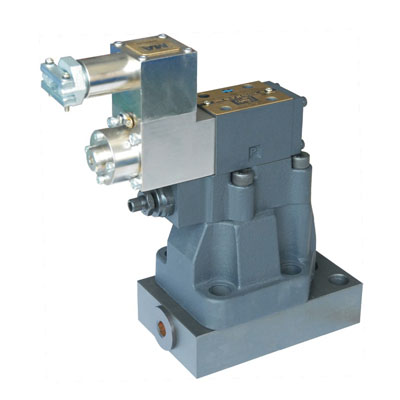

Explosion isolation solenoid unloading valve
This explosion isolation valve is a pilot-operated relief valve, with a conical structure for both the pilot valve and the main valve. Model Y is mainly used to control the system pressure while Model YW can control the system pressure or unload it.
Technical specification
Model |
03 |
06 |
10 | |
Flow (l/min) |
40 |
100 |
250 | |
Cav. A Maximum Pressure (MPa) |
TO 31.5 | |||
Hydraulic Fluid |
Mineral Oil, Phosphate | |||
Fluid Temp. () |
2.8~100 | |||
Viscosity (mm2/s) |
-20~70 | |||
Weight (Kg) |
YX |
3.8 |
7.7 |
13.4 |
YXW |
4.9 |
8.8 |
14.5 | |
Solenoid Performance |
See GDFW-02 Solenoid |
