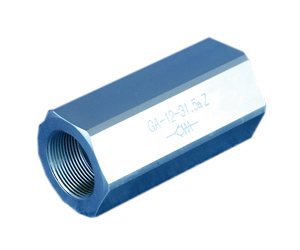

In-Line check valve

Conical structured valve, model a straight-through check valve allows the fluid to flow only in one direction and prevents it from flowing in the opposite direction. the built-in spring holds the core in the close position. with simple structure, reliable performance and small pressure loss, it is mainly used at pump discharge, or used as back pressure valves.

Technical specification

Model	01	02	03	04	06	10
Maximum Flow (l/min)	10	18	30	65	115	175
Hydraulic Fluid	Mineral Oil, Phosphate
Fluid Temp. ()	-20~70
Viscosity (mm2/s)	2.8~100
Working Pressure (MPa)	TO 31.5
Opening Pressure (MPa)	0.04 Or 0.4

Model description Function symbol

Mounting dimensions
