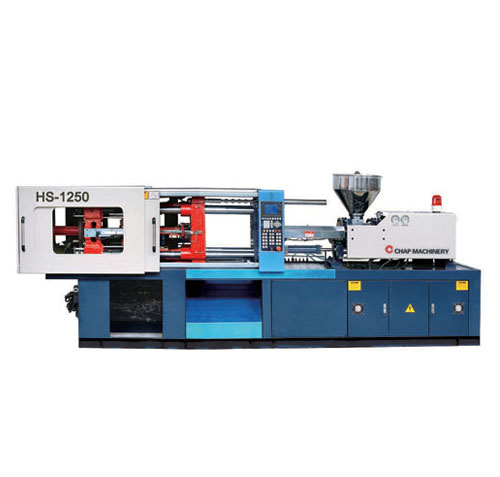

Injection Molding Machine

Hydraulic unit
This unit composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.

Clamping unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.

Electronic equipments control
It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.

Platen Dimensions

HS series injection moulding machine specification

LTEM	LTEM MACHINE MODEL	UNIT	HSG-1250
Injection Unit	Screw diameter	mm	42 45
	Theoretical shot capacity	mm3	242 278
	Max.injection pressure	Mpa	169 147
	Injection rate	g/s	100 130
	Plastcization capacity	g/s	17.5 19.5
	Screw speed	r.p.m	0-180
Clamping Unit	Locking force	KN	1250
	Stroke of moving platen	mm	355
	Min.mould thickness	mm	130
	Max.mould thickness	mm	430
	Space between tie-bars	mm	410355
	Hyd ejector force	KN	32
	Hyd ejector stroke	mm	125
General	Pump power	KW	11
	Heating power	KW	7.5
	Oil pump capacity	L/min	83
	Oil tank capacity	L	260
	Size(IWH)	m	4.31.051.75
	Machine weight	t	3.4
