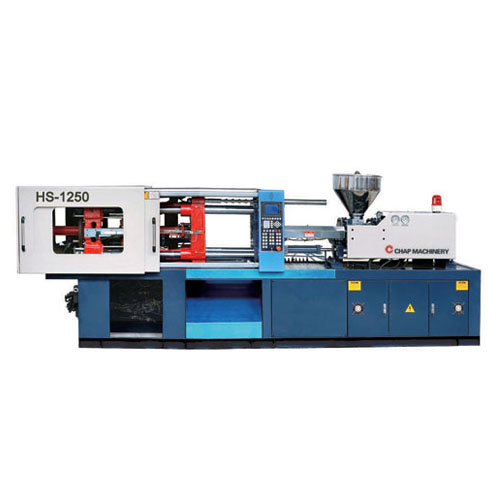

Injection Molding Machine

Description:
Hydraulic unit
This unit composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit

Clamping unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.

Electronic equipments control
It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.

Platen dimensions

HS series injection moulding machine specification

LTEM	LTEM MACHINE MODEL	UNIT	HS-3000
Injection Unit	Screw diameter	mm	60 65 70
	Theoretical shot capacity	mm3	833 978 1134
	Max.injection pressure	Mpa	203 173 149
	Injection rate	g/s	215 250 290
	Plastcization capacity	g/s	46 5563
	Screw speed	r.p.m	150
Clamping Unit	Locking force	KN	3000
	Stroke of moving platen	mm	600
	Min.mould thickness	mm	250
	Max.mould thickness	mm	680
	Space between tie-bars	mm	660620
	Hyd ejector force	KN	70
	Hyd ejector stroke	mm	150
General	Pump power	KW	30
	Heating power	KW	17.25
	Oil pump capacity	L/min	183
	Oil tank capacity	L	720
	Size(IWH)	m	6.61.752.19
	Machine weight	t	11.5
