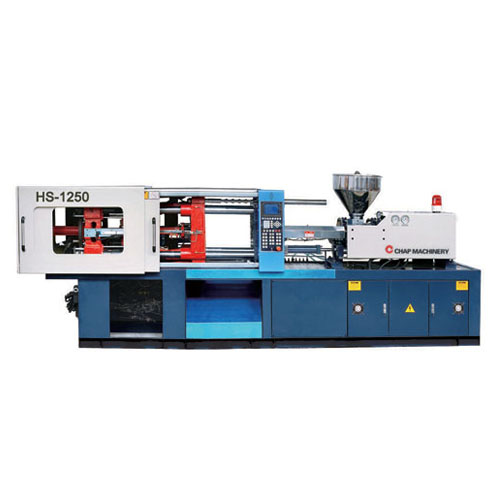

Injection Molding Machine
Hydraulic unit
This unit composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
This unit composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit.
Clamping unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.
Electronic equipments control
It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.
Platen dimensions
HS series injection moulding machine specification
LTEM |
LTEM MACHINE MODEL |
UNIT |
HS-4000 |
Injection Unit |
Screw diameter |
mm |
6570 75 |
Theoretical shot capacity |
mm3 |
1127 1308 1501 | |
Max.injection pressure |
Mpa |
208 179 156 | |
Injection rate |
g/s |
309 358 415 | |
Plastcization capacity |
g/s |
50 60 66 | |
Screw speed |
r.p.m |
160 | |
Clamping Unit |
Locking force |
KN |
4000 |
Stroke of moving platen |
mm |
675 | |
Min.mould thickness |
mm |
250 | |
Max.mould thickness |
mm |
760 | |
Space between tie-bars |
mm |
720720 | |
Hyd ejector force |
KN |
110 | |
Hyd ejector stroke |
mm |
160 | |
General |
Pump power |
KW |
37 |
Heating power |
KW |
21.4 | |
Oil pump capacity |
L/min |
248 | |
Oil tank capacity |
L |
900 | |
Size(IWH) |
m |
7.11.852.29 | |
Machine weight |
t |
18 |
