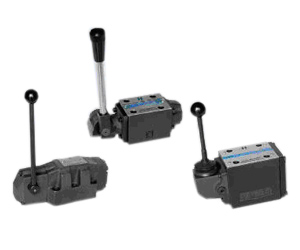

Manual operated directional control valve
This model is a direct-action directional control slide valve, by operating the handle, the core moves in the axial direction to achieve oil loop switching. It is Plate Connection and has multiple slide valve functions such as 2-position 3-way, 2-position 4-way, and 3-position 4-way.
Technical specification
|
Model |
FS-02 |
FS-03 |
FS-04 | |
| Flow (l/min) |
35 |
63 |
100 | |
|
Work Pressure (MPa) |
Cavity P,A,B |
31.5 |
31.5 | |
|
Cavity T |
16 |
25 | ||
| Hydraulic Fluid |
Minerai Oil, Phosphate-ester | |||
| Fluid Temp. () |
-20~70 | |||
| Viscosity (mm2/s) |
2.8~500 | |||
|
Manipulation Force (N) |
20 For No Return Press. 30 For Return Press.=16MPa |
16-23 For With Positioner 20-27 For With Spring |
About 75 | |
| Weight (Kg) |
1.4 |
4.0 |
8 | |
Model description External dimensions
