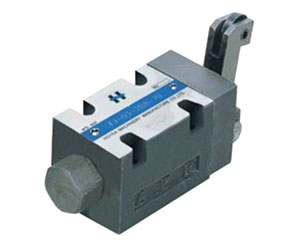

Mechanical-operated directional control valve
This model is a directional control valve which relies on mechanical movement to change the position of the core tochange flow direction in the fluid loop. Featured by low flow resistance, low noise, high efficiency and long life, it is widely used in hydraulic systems for molding machines, crane and
transporting machinery and oil exploration machinery.
transporting machinery and oil exploration machinery.
Technical specification
|
Model |
02 |
03 |
| Flow (l/min) |
35 |
63 |
| Hydraulic Fluid |
Mineral Oil Or Phosphate | |
| Fluid Temp.() |
-20~70 | |
| Viscosity (mm2/s) |
2.8~100 | |
| Filtration Accuracy (m) |
25 | |
| Maximum Work Pressure (MPa) |
25 | |
|
Maximum Back Pressure (MPa) |
10 | |
| Weight (Kg) |
11 |
3.8 |
Model description
Function symbol
