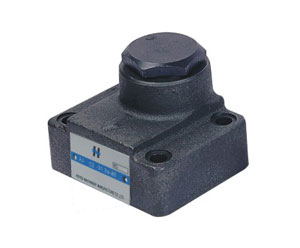

Orthogonal check valve
Conical structured valve, AJ Orthogonal Check Valve allows the fluid to flow only in one direction and prevents it from flowing in the reverse direction. The built-in spring holds the core in the close position. With simple structure, reliable performance and small pressure loss, it is mainly used at pump discharge as back pressure and check valves.
Technical Specification
|
Model |
03 |
06 |
10 |
| Maximum Flow (l/m) |
40 |
100 |
200 |
| Hydraulic Fluid |
Mineral Oil, Phosphate | ||
| Fluid Temp. () |
-20~70 | ||
| Viscosity (mm2/s) |
2.8~100 | ||
| Working Pressure (MPa) |
31.5 | ||
