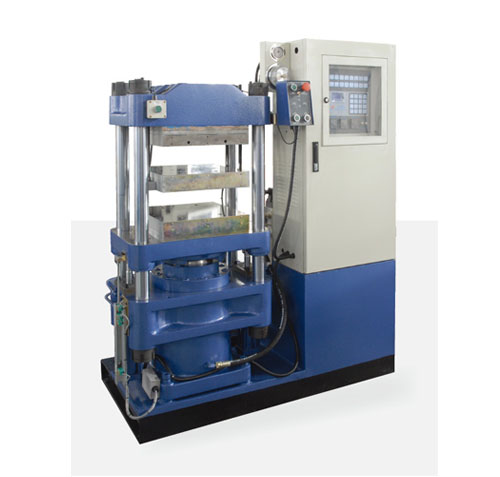

Plate vulcanization press for rubber
Items
Unit
Parameter
Clamping force
kN
2000
Max. System pressure
MPa
23
Clamping Stroke
mm
400
Rapid Clamping Speed
mm/s
50
Heating Plate Spacing
mm
750850
Max. Temperature
mm
180-480
Number of Work layers
250
Motor Power
kW
5.5
Heating Power
kW
25.5
External Dimension (LWH)
mm
210012002100
Weight
kg
6000
Motor Power
kW
4
Oil Tank Capacity
L
360


Flow of machine motions

2RT
1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing
6open the mould
7push out the mould
8eject the mould, pick up the finished products

3RT
1initial state
2M2the second mould platen goes down
3M1the first mould platen goes down
4load the mould
5close mould, increase pressure , expel bubbles out and vulcanizing
6open the mould,push out the mould

4RT
1initial state
2lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3M2the second mould platen and M1the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure, expel bubbles out and vulcanizing
5open the mould, push out the mould 6M1the first mould platen goes up
7M2the second mould platen goes up and opens the mould
8M3the third mould platen goes back with the slide plate
9M2the second mould platen goes down and locating
10ower plate (L)goes up ,take out the finished product, clean the mould.
