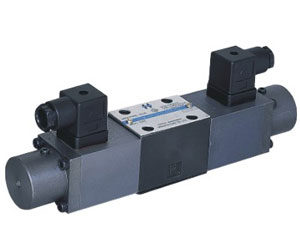

Proportional directional valve-Proportional valves
This product is a direct-action valve which uses the proportional solenoid to control the flow rate and directions in the hydraullic system.
Technical specification
Model description
External dimensions
Technical specification
|
Model |
02 |
03 | |
|
Maximum Pressure at port P(MPa) |
31.5 | ||
|
Maximum Pressure at port T ( MPa) |
16 | ||
|
Maximum Flow (l/min) |
45 |
95 | |
|
Hysteresis (%) |
<5 | ||
|
Repeatability (%) |
<2 | ||
|
Filtration Accuracy (um) |
20 | ||
|
Hydraulic Fluid |
Mineral Oil, Phosphate | ||
|
Viscosity (mm2/s) |
2.8~100 | ||
|
Fluid Temp.() |
-20~70 | ||
|
Coil Resistance () |
19.5 | ||
|
Weight (Kg) |
2-Position |
1.9 |
2.6 |
|
3-Position |
3.8 |
4.5 | |
Model description
External dimensions
