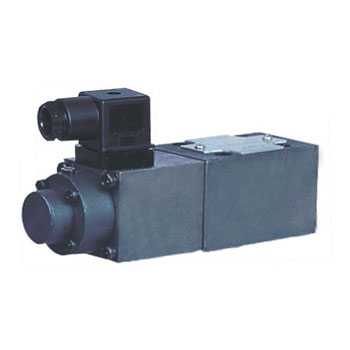

Proportional directly operated pressure relief valve-Proportional valves
 As a direct action relief valve controlled by a proportional solenoid, this product may be used as the pilot for small flow hydraulic systems or relief valves, with system pressure controlled by the value of input current.

Technical specification

Maximum Pressure (MPa)
31.5
Maximum Flow (l/min)
2
Minimum Flow (l/min)
0.3
Rated Current (mA)
750
Coil Resistance
10
Hysteresis (%)
<2
Repeatability (%)
1
Weight (Kg)
2
