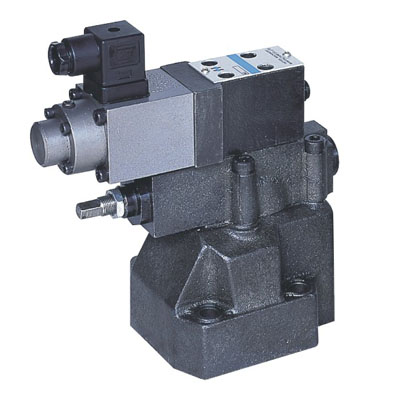

Proportional pilot,operated reducing valve-Proportional valves
Comprised of a proportional directly-operated relief valve, a pressure limiting valve and a reducing valve, this product controls system pressure according to the value of input current.
Technical specification
|
Model |
BYJM-03 |
BYJM-06 |
BYJM-10 |
| Maximum Pressure (MPa) |
35 |
35 |
35 |
| Maximum Flow ( l/min) |
100 |
200 |
400 |
| Minimum Flow (l/min) |
3 |
3 |
3 |
| Secondary Pressure Regulating Range (MPa) |
See Model Description | ||
| Rated Current (mA) |
750 |
750 |
750 |
| Coil Resistance () |
10 |
10 |
10 |
| Hysteresis (%) |
<3 |
<3 |
<3 |
| Repeatability (%) |
1 |
1 |
1 |
| Weight (Kg) |
4.8 |
6.3 |
8.6 |
