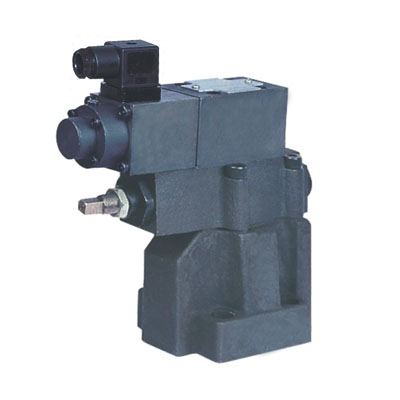

Proportional pilot-operated relief valve-saving valve.
Comprised of a proportional directly-operated relief valve, a pressure limiting valve and a low-noise relief valve, this product controls system pressure according to the value of input current.
Technical specification
|
Model |
BYM-03 |
BYM-06 |
BYM-10 |
|
Maximum Pressure (MPa) |
31.5 |
31.5 |
31.5 |
|
Maximum Flow (l/min) |
100 |
200 |
400 |
|
Minimum Flow (l/min) |
3 |
3 |
3 |
|
Rated Current (mA) |
750 |
750 |
750 |
|
Coil Resistance () |
10 |
10 |
10 |
|
Hysteresis (%) |
<2 |
<2 |
<2 |
|
Repeatability (%) |
1 |
1 |
1 |
|
Weight (Kg) |
5.6 |
6.3 |
10 |
