Series hydraulic directional valve

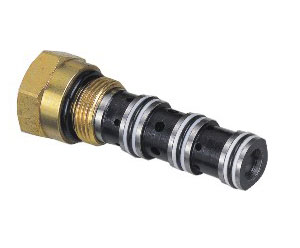

Model LCFH is a small flow rate hydraulic directional valve, with the liquid driving, the core of which can be opened or closed, and make the parts coherent-movement come true.
Technical Specification
|
Model |
LCFH-4-4A31.5-00 |
LCFH-4-4C31.5-00 |
| Rated Flow(l/min) |
Px=0.5MPa+1/3PB |
Px=0.4MPa+1/3PB |
| Pressure (MPa) |
20 |
20 |
| Pressure (MPa) |
31.5 | |
| Hydraulic Fluid |
Mineral Oil, Phosphate | |
| Viscosity (mm2/s) |
2.8~320 | |
| Fluid Temp. () |
-20~70 | |
Model description Function symbol
External dimensions Hole size
