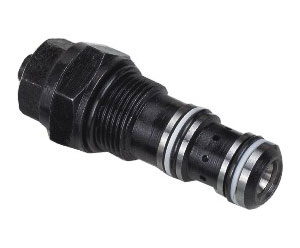

Series pressure reducing valve
LCJ series pressure reducing valve, the oil enters from P1, when P2 pressure reaches the set point, the valve core will move up and stop P1 so as to reach the aim of control the pressare of P2.
Technical specification
Model |
LCJ-6-31.5-00 |
LCJ-12-31.5-00 |
Rated Flow (l/min) |
20 |
80 |
Pressure (MPa) |
31.5 | |
Hydraulic Fluid |
Mineral Oil, Phosphate | |
Viscosity (mm2/s) |
2.8~320 | |
Fluid Temp. () |
-20~70 |
Model description Function symbol
External dimensions Hole size
