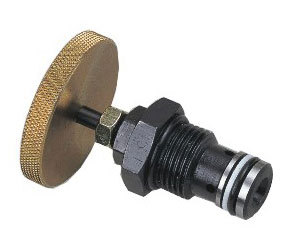

Series throttle valve
Model LCL is a compensation free, adjustable threaded cartridge throttle valve or throttle check valve. In case of throttle valve, the fluid can flow through the restriction port between Ports 2 and 1, with adjustable opening. Counter-clockwise rotation makes the restriction port open wider and clockwise rotation makes it tighter until to the fully closed position.
Technical specification
|
Model |
LCL-4-31.5-K-00 |
LCL-6-31.5-K-00 |
LCL-12-31.5-K-00 |
| Rated Flow (l/min) |
25 |
25 |
50 |
| Pressure (MPa) |
31.5 | ||
| Hydraulic Fluid |
Mineral Oil, Phosphate | ||
| Viscosity (mm2/s) |
2.8~320 | ||
| Fluid Temp. () |
-20~70 | ||
Model description Function symbol
External dimensions Hole size
