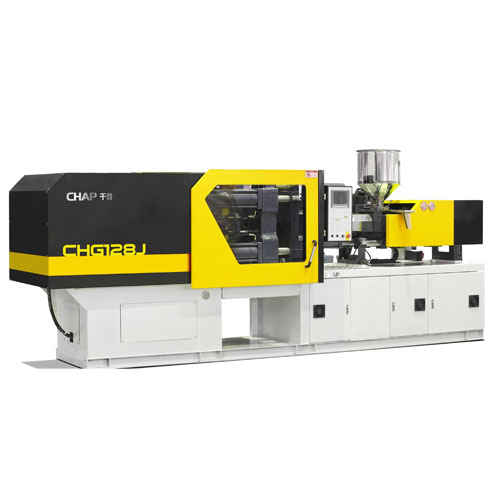

Servo Energy-Saving Two-Platen Four-Cylinder Hydraulic Injection Molding Machine
CHG series full hydraulic two-platen injection molding machine for plastic, relying on independent intellectual property rights, make full use of the internal groups advanced technologyHOYEAelectrohydraulic control,HOPEA(microcomputer frequency Conversion control) and precision injection molding machine developed independently by injection molding machine experienced engineers in CHAP Machinery. With the latest European Hydraulic Design Concept, CHAP Machinery electro-hydraulic control specialists make great efforts to build the plastic injection equipment with environment-friendly and energy-saving.
Features:
Super-Large space, we can make machine as the requirement of customers products, with parameters strong adaptability.
Short clamping stroke line, is only the distance between main moving platen and fixed platen, mould- clamping is high rigidity and precision.
Main moving platen adopts oil-less self-lubricating copper sets guide, ensure clean production environment. Support sliding feet can choose linear slide way guide, which greatly enhance the rigidity of clamping unit and service life of mould..
Using the latest German sealing technologies and products, ensure the sealing performance high.
Hydraulic system adopts proportional integrated instrument control system to ensure the mould transfer rapidly, stably.
Electrical system uses Siemens controller, with high speed, good stability, high performance and good scalability.
technical specification
|
Item |
Unit |
Parameter | ||
|
Screw no |
|
A |
B |
C |
|
Screw Dia |
mm |
38 |
42 |
45 |
|
Screw LD ratio |
|
23.2 |
21 |
19.6 |
|
Theoretical capacity |
cm3 |
209 |
256 |
294 |
|
Injection weight |
g |
190 |
233 |
267 |
|
Injection Pressure |
MPa |
243 |
199 |
173 |
|
Injection rate |
g/s |
100.9 |
123 |
141.2 |
|
Plasticizing capacity |
g/s |
14.7 |
18.2 |
20.6 |
|
Max. screw speed |
rpm |
200 | ||
|
Clamping force |
kN |
1280 | ||
|
Moving mould distance |
mm |
560 | ||
|
Tie bar spacing |
mm |
420420 | ||
|
Max.Daylight |
mm |
730 | ||
|
Min. mould thickness |
mm |
170 | ||
|
Ejector stroke |
mm |
150 | ||
|
Ejector force |
kN |
41 | ||
|
Ejector bar amount |
|
5 | ||
|
Max.pump pressure |
MPa |
17.5 | ||
|
Pump motor power |
kW |
15 | ||
|
Heating power |
kW |
7.5 | ||
|
External dimention |
mm3 |
450016002100 | ||
|
Weight |
Kg |
5500 | ||
|
Material cylinder capacity |
L |
25 | ||
|
Oil tank capacity |
L |
265 | ||
