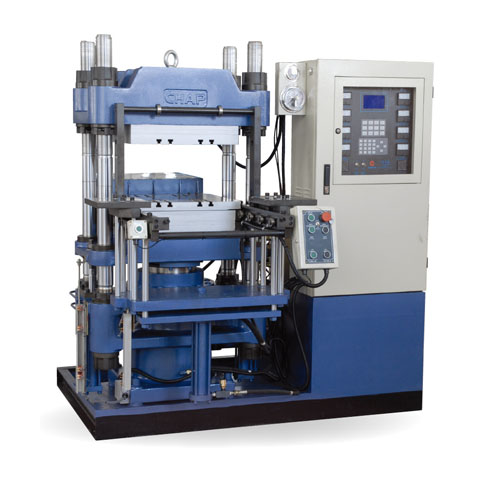

Items	Unit	Parameter
Clamping force	kN	4000
Max.System pressure	MPa	23
Rapid Clamping Speed	mm/s	50
Heating Plate Size	mm	8501000
Heating Plate Spacing	mm	200500
Max. Temperature		250
Number of Work layers		Single-Layer
Motor Power	kW	7.5
Heating Power	kW	34
External Dimension (LWH)	mm	250035003000
Weight	kg	12700
Optional		Ejection organ
Oil Tank Capacity	L	550

Flow of machine motions

2RT
1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure, expel bubbles out and vulcanizing
6open the mould
7push out the mould
8eject the mould, pick up the finished products

3RT
1initial state
2M2the second mould platen goes down
3M1the first mould platen goes down
4load the mould
5close mould, increase pressure , expel bubbles out and vulcanizing
6open the mould,push out the mould
7M1the first mould platen goes up
8M2the second mould platen goes up and opens the mould

4RT
1initial state
2lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3M2the second mould platen and M1the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure, expel bubbles out and vulcanizing
5open the mould, push out the mould
6M1the first mould platen goes up
7M2the second mould platen goes up and opens the mould
8M3the third mould platen goes back with the slide plate
9M2the second mould platen goes down and locating
10ower plate (L)goes up ,take out the finished product, clean the mould.
