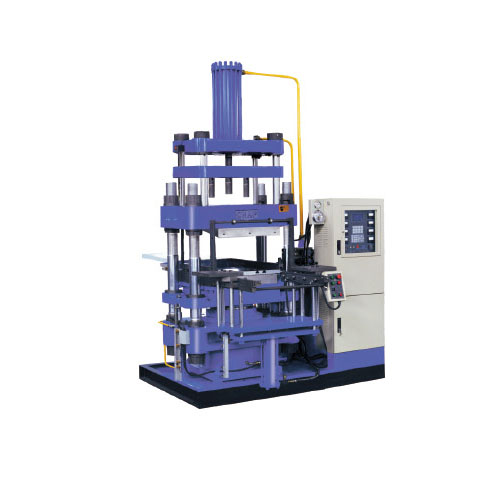

Transfer type molding machine for oversize vehicle's seals


Summary:

   XZB series transfer type molding machine for rubber(semiautomatic rubber injection molding machine) is our companys original R&D results and has a number of national patents (Patent No.ZL 03230397.3 ZL200420110566.1 and ZL200620105181.5). It is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall., these products process is complex and more difficult to form. Among them the multi-purpose rubber transfer type molding machine (semiautomatic rubber injection molding machine) based on the frequency conversion technology was established as National Science and Technology Ministry innovation fund project of technology type medium and small enterprises.

Features:

   Clamping cylinder clamps mould first, then injection cylinder press rubber material into mould cavity uniformly. Therefore the rubber parts have precision dimension, uniform and stable performances.
   It uses the original imported high pressure pump, and middle and high pressure vane pump combination, controlled by proportional pressure & flow composite valve, hydraulic system configuration is advanced, reasonable and reliable with low noise and low energy consumption.
   The main moving platen raises rapidly, clamps slowly, declines rapidly, so the  efficiency is improved and the mould is protected
   It uses automatic in-out mould and ejector mechanism, reduces labor intensity and avoids the artificial damage to mould
   The hydraulic cylinder uses patent technology of oil cylinder composite sealing device (Patent No.ZL03220060.3)which is with independent intellectual property rights, with reliable seal and long service life
   The oil tank adopts the patent technology of turn board structure open tank(Patent No.ZL200620105181.5), it saves time and effort for maintenance , more human-friendly.
   The electric system adopts full computer control, it is convenient for operation. It has two working modes of point moving and semi automation. Users can choose PLC control and 5.7-inch touch-control screen imported from Siemens or Mitsubishi
    Preparing material is simple, fast. Production efficiency is high.

Technical Specification

Items
Unit
Specification
Clamping force
kN
3000
Max.System pressure
MPa
23
Clamping Stroke
mm
350
Rapid Clamping Speed
mm/s
40
Injection pressure
MPa
95
Injection stroke
mm
618
Material Cylinder Spec
mm
40438
Heating Plate Size
mm
6601000
Heating Plate Spacing
mm
300550
Max. Temperature
250
Ejector Stroke
mm
350
Ejector Force
kN
60
Motor Power
kW
5.5
Heating Power
kW
27
External Dimension (LWH)
mm
24002500(37503950)
Weight (total)
kg
8500
Oil Tank Capacity
L
250


Flow of machine motions

2RT

1initial state
2start-up(ejector reposit)
3load the mould
4main cylinder goes up rapidly
5main cylinder goes up slowly, increase pressure
6put material in , injection pole goes down, expel bubbles out and vulcanizing
7injection pole goes up, open the mould
8push out the mould
9eject the mould, pick up the finished products

3RT


1initial state
2m2 the second mould platen goes down
3 m1 the first mould platen goes down
4 load the mould
5 main cylinder goes up rapidly, increase pressure
6 Put material in, injection pole goes down, expel bubbles out and vulcanizing
7 injection pole goes up, open the mould
8 push out the mould
9 m1 the first mould platen goes up
10m2 the second mould platen goes up and opens the mould

4RT


1initial state
2lower platen(L) goes down,m2 the second mould platen goes up, m3 the third mould platen goes forward with the slide plate
3m2 the second mould platen and m1 the first mould platen go down
4load the mould, main cylinder goes up and increase the pressure
5put material in , injection pole goes down, expel bubbles out and vulcanizing
6open the mould ,injection pole goes up, push out the mould
7m1 the first mould platen goes up
8m2 the second mould platen goes up and opens the mould
9m3 the third mould platen goes back with the slide plate
10m2 the second mould platen goes down and locating
11lower plate (L)goes up ,take out the finished product, clean the mould
