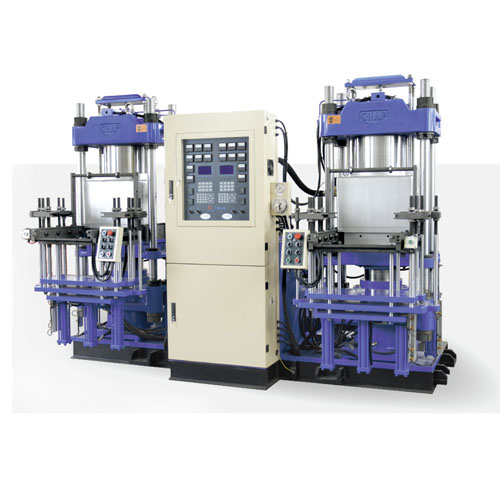

Items	Unit	Parameter
Clamping force	kN	2000
Max.System pressure	MPa	23
Clamping Stroke	mm	300
Rapid Clamping Speed	mm/s	50
Heating Plate Size	mm	540600
Heating Plate Spacing	mm	250400
Max. Temperature		250
Vacuum Cover Stroke	mm	250
Ejector Stroke	mm	300
Ejector Force	kN	60
Motor Power	kW	5.55.5
Heating Power	kW	1313
External Dimension (LWH)	mm	38002550(24502900)
Weight	kg	13000
Max Mould Thickness	mm	240
Oil Tank Capacity	L	400

Flow of machine motions

1 initial state
2 M2the second mould platen goes down
3 M1the first mould platen goes down
4 load the mould, main cylinder goes up rapidly
5 vacuum cover goes down, suck out the air, increase pressure and expel bubbles out
6 vacuum cover goes up, vulcanizing
7 open the mould, push out the mould
8 M1the first mould platen goes up
9 M2the second mould platen goes up and opens the mould

1 initial state
2 lower platen(L) goes down,M2the second mould platen goes up, M3the third mould platen goes forward with the slide plate
3 M2the second mould platen and M1the first mould platen go down
4 load the mould, main cylinder goes up
5 vacuum cover goes down, suck out the air, increase pressure and expel bubbles out
6 vacuum cover goes up, vulcanizing
7 open the mould, push out the mould
8 M1the first mould platen goes up
9 M2the second mould platen goes up and opens the mould
10M3the third mould platen goes back with the slide plate
11M2the second mould platen goes down and locating
12lower plate (L)goes up ,take out the finished product, clean the mould.
